| Brand Name : | Vicord |
| Model Number : | YC Z200HT |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | L/C,T/T |
| Supply Ability : | 30 set per month |
| Delivery Time : | 50 days |
Gate Valve Machining Line - Truning, Milling And Drilling
Description:

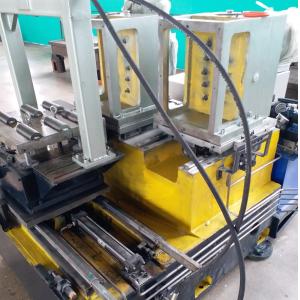

PLC-controlled horizontal dual-spindle machine for simultaneous drilling and tapping of valve components. Features automatic tool positioning for complete processing in one clamping.
Advantage
Dual-spindle design for parallel hole processing
Auto-tapping after drilling (one-clamp operation)
Heavy-duty base & precision worktable
PLC automation with real-time monitoring
Coolant system for optimal tool life
Applications:
• Valves: Bodies/flanges for ball/gate/globe/check valves.
| Project | YC II Z200HT | YC II Z300HT | YC II Z400HT | YC II Z600HT |
| Technical specifications | ∅295 | ∅410 | ∅525 | ∅770 |
| 600 | 800 | 800 | 1000 | |
| 200 | 200 | 300 | 300 | |
| 340 | 450 | 450 | 450 | |
| moshi2# | moshi2#/moshi3# | moshi2#/moshi3# | moshi2#/moshi3# | |
| Processing accuracy | ≤0.5≤0.5 | ≤0.6≤0.6 | ≤0.8≤0.8 | ≤1≤1 |
| 12.5 | 12.5 | 12.5 | 12.5 | |
| Spindle drive | 2 level | 2 level | 2 level | |
| 225/286 | 197/223 | 159/231 | 11KW motor | |
| YE2-132M–6–5.5KW | YE2-132M–6–5.5KW | YE2-132M–6–7.5KW | YE2-180L–8–11KW | |
| control system (optional) | PLC | |||
| Feed form (optional) | Hydraulic drive | |||
| Machine shape | 2800X1000X1500 | 3200X1200X1700 | 3300X1200X1700 | 3400X1500X2000 |
| Machine weight (kg) | 1800 | 2200 | 3000 | |
Processed Products


|
