Brand Name : | VICORD |
Model Number : | YCWJ400 |
Price : | Negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 30 sets per month |
Delivery Time : | 60 days |

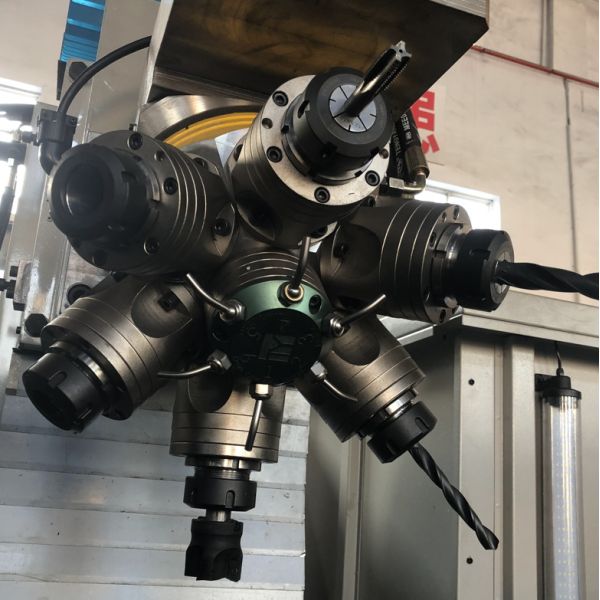

Milling, drilling, countersinking, tapping Power turret machining center
Power turret horizontal machining center
Main features
1. Improve processing flexibility and reduce non-processing time:
The power turret is equipped with multiple tools and can rotate and
change tools quickly, which enables CNC machine tools to respond
flexibly when performing complex processing. Through the turret,
multiple processes such as turning, milling, and drilling can be
completed on a workpiece, reducing the equipment conversion time
and manual intervention, and improving production efficiency.
2. Improve processing accuracy: The power turret can accurately
control the position of each tool, avoiding errors in the
traditional manual tool change process and improving processing
accuracy. This is especially important for occasions that require
high-precision parts production.
3. Optimize processing space: The design of the power turret
enables the tool to work at different angles of the machine tool,
making full use of the processing space. Even for complex
workpieces, multiple processing steps can be completed in a limited
working space, improving the integration of the process.
4. Optimization of the drive system: The power system optimization
of the power turret, including the selection and configuration of
electric motors or pneumatic motors, can improve power transmission
efficiency and stability. Electric drive systems are gradually
becoming mainstream, with fast response speed, accurate
positioning, lower energy consumption, and reduced maintenance
costs.
5. Intelligent tool management: Modern power turrets have
introduced intelligent tool management systems that can monitor the
status of tools (such as wear) in real time and automatically
compensate. This enables the machine tool to maintain stable
machining accuracy during long-term high-load work, further
improving production efficiency.
6. Improve tool change speed: With the continuous optimization of
the tool change mechanism, the tool change time of modern power
turrets has been significantly shortened. Some advanced power
turrets can complete tool changes within a few seconds, which
greatly improves the overall speed of the production line.
7. Multi-function integration: Power turrets are not limited to
traditional milling, drilling and other processes, but can also
integrate more functions, such as tapping, thread cutting,
broaching, etc. Through multi-function integration, the
adaptability and processing capacity of the equipment are greatly
improved, and can meet the processing needs of more types of
workpieces.
Details
Project | Machine Specifications | YCWJ400 |
Technical Specifications | Table size (length × width) | 450×450mm |
Turntable size | 320×320mm | |
Number of turret head axes | 6 | |
Connection method between turret head spindle and tool | ER40 Circlip | |
X-axis travel | 500mm | |
Z-axis travel | 450mm | |
Y-axis travel | 350mm | |
Maximum drilling diameter | Φ25 | |
Maximum tapping diameter | Φ20 | |
Feed motor | Servo Motor | |
Machine tool lubrication method | Positive displacement automatic lubrication | |
Main motor | Total machine power | 11KW |
Rated speed | 1500r/min | |
Rated power | 4KW | |
Feed motor | X-axis motor | 130SY-M10 |
Rated speed | 1500r/min | |
Rated power | 1.6KW | |
Rated output torque | 10N.m | |
Y-axis motor | 130SY-M-7.7 | |
Rated speed | 2000r/min | |
Rated power | 1.6KW | |
Rated output torque | 7.7N.m | |
Z-axis motor | 130SY-M-20 | |
Rated speed | 1500r/min | |
Rated power | 3KW | |
Rated output torque | 20N.m | |
Machine tool shape | (Length×width ×height )(mm) | 2000×1600×1800 |
Machine tool weight | KG | 2500 |
Processed product
![]() |
